Adaptive detailing
Date
Oct 2017 – Nov 2022
Context
PhD research, Gramazio Kohler Research, ETH Zurich, Switzerland
Team
Inés Ariza, Dr. Romana Rust, Philippe Fleischmann, Gonzalo Casas, Dr. Ammar Mirjan, Michael Lyrenmann
Technologies
Robotic wire and arc additive manufacturing (WAAM)
Acknowledgements
Supported by the Institute of Technology in Architecture, ETH Zurich, and the NCCR Digital Fabrication. Equipment sponsored by Fronius Schweiz AG
Adaptive detailing enables the design and production of additively manufactured connection details for non-standard spatial structures.

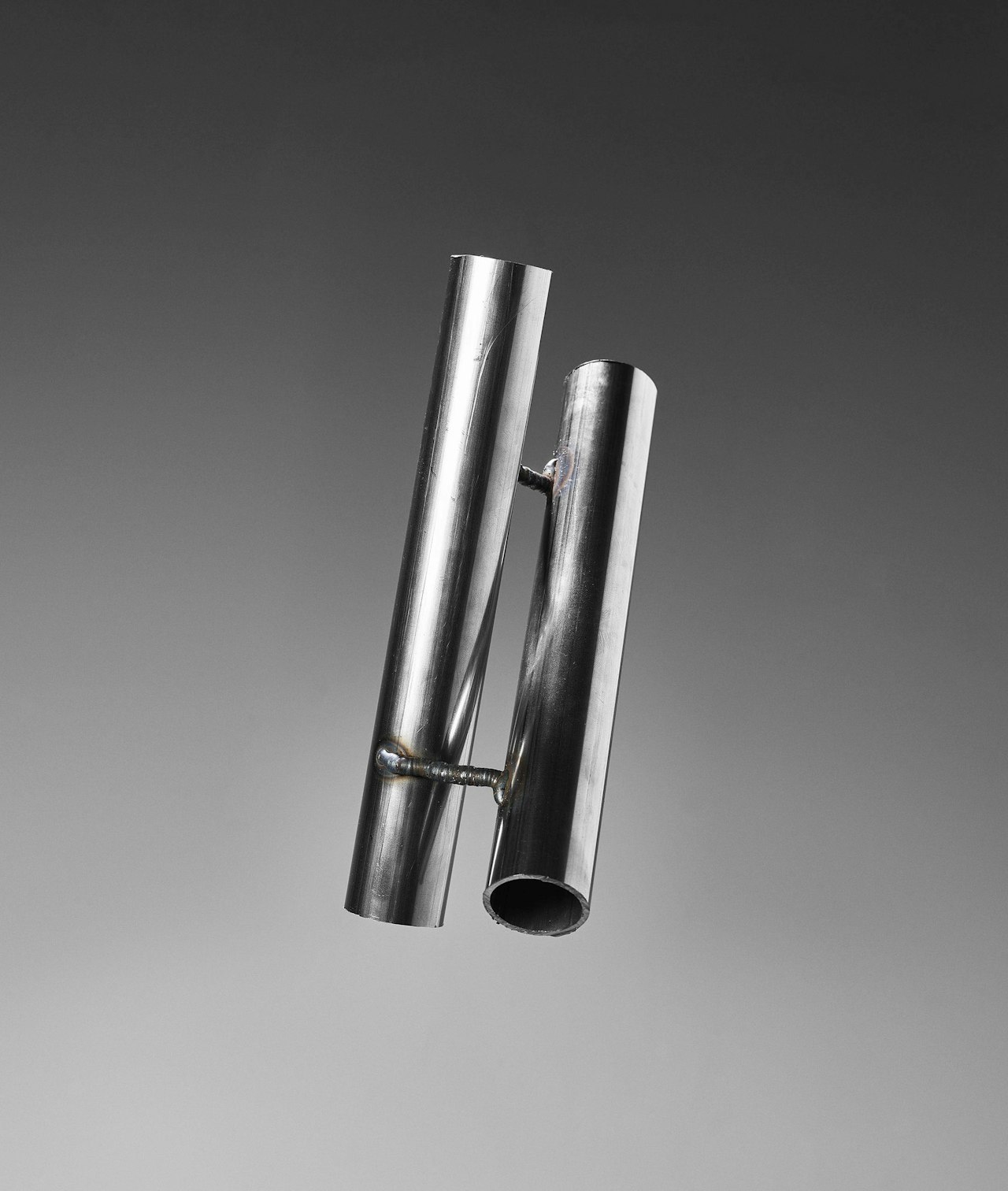

Rather than producing custom nodes in a separate prefabrication process, adaptive detailing enables the creation of connections that are manufactured directly onto building members tailoring the connection detail geometry based on as-found conditions.
The method is explored through robotic wire arc additive manufacturing (WAAM), a metal 3D printing technique based on GMAW welding. The robotic manufacturing process is coupled with sensing and feedback strategies to allow for local adaptive control of the connection geometry.
In the Spring of 2021 the project was featured in the #NCCRWomen campaign:
References
Lost and bound: adaptive detailing with robotic additive joining for reclaimed steel
Ariza, I., Rust, R., Silvestru, V. A., Taras, A., Gramazio, F., Kohler, M., and De Wolf, C. Lost and bound: adaptive detailing with robotic additive joining for reclaimed steel. ROBARCH2024. Forthcoming.Adaptive Detailing
Ariza I., Adaptive Detailing: design and fabrication methods for in place wire and arc additive manufacturing of connection details, PhD thesis, ETH Zurich, 2022.Structural behaviour of point-by-point wire arc additively manufactured steel bars under compressive loading
Silvestru, Vlad-Alexandru, Inés Ariza, and Andreas Taras. "Structural behaviour of point-by-point wire arc additively manufactured steel bars under compressive loading." Journal of Constructional Steel Research 207 (2023): 107982.Ductility and Buckling Behaviour of Point‐by‐Point Wire Arc Additively Manufactured Steel Bars
Silvestru, Vlad‐Alexandru, Inés Ariza, and Andreas Taras. "Ductility and Buckling Behaviour of Point‐by‐Point Wire Arc Additively Manufactured Steel Bars." ce/papers 5, no. 4 (2022): 226-234.Adaptive Detailing with Wire and Arc Additive Manufacturing
Ariza I., Rust R., Gramazio F., Kohler M., Adaptive Detailing with Wire and Arc Additive Manufacturing. In Print! ARCHITECTURE, 2022.Corrosion Behaviour of Point‐by‐point Wire and Arc Additively Manufactured Steel Bars
Michel, Lucas, Asel Sanchez, Vlad‐Alexandru Silvestru, Inés Ariza, Andreas Taras, and Ueli Angst. “Corrosion Behaviour of Point‐by‐point Wire and Arc Additively Manufactured Steel Bars.” Materials and Corrosion, February 1, 2022. https://doi.org/10.1002/maco.202112994.Performance under tensile loading of point-by-point wire and arc additively manufactured steel bars for structural components
Silvestru, V.A., Ariza, I., Vienne, J., Michel, L., Sanchez, A.M.A., Angst, U., Rust, R., Gramazio, F., Kohler, M. and Taras, A., 2021. Performance under tensile loading of point-by-point wire and arc additively manufactured steel bars for structural components. Materials & Design, 205, p.109740.Towards adaptive detailing with in-place WAAM connections
Ariza I., Rust R., Gramazio F., Kohler M., Towards adaptive detailing with in-place WAAM connections. BE-AM 2020. Symposium and exhibition. 2020: 35- 47.Numerical Sculpting. Volumetric modelling tools for in place spatial additive manufacturing
Mitropoulou, I., Ariza, I., Bernhard, M., Dillenburger, B., Gramazio, F., and Kohler, M. “Numerical Sculpting: Volumetric Modelling Tools for In Place Spatial Additive Manufacturing.” In Impact: Design With All Senses, edited by Christoph Gengnagel, Olivier Baverel, Jane Burry, Mette Ramsgaard Thomsen, and Stefan Weinzierl, 132–45. Cham: Springer International Publishing, 2019. https://doi.org/10.1007/978-3-030-29829-6_11.In Place Detailing. Combining 3D printing and Robotic Assembly
Ariza, I., Mirjan, A., Gandia, A., Casas, C., Cros, S., Gramazio, F., Kohler, M., 2018. “In Place Detailing. Combining 3D printing and Robotic Assembly” In: ACADIA 2018 Re/Calibration: On Imprecision and Infidelity, Mexico City, pp. 312–21.
